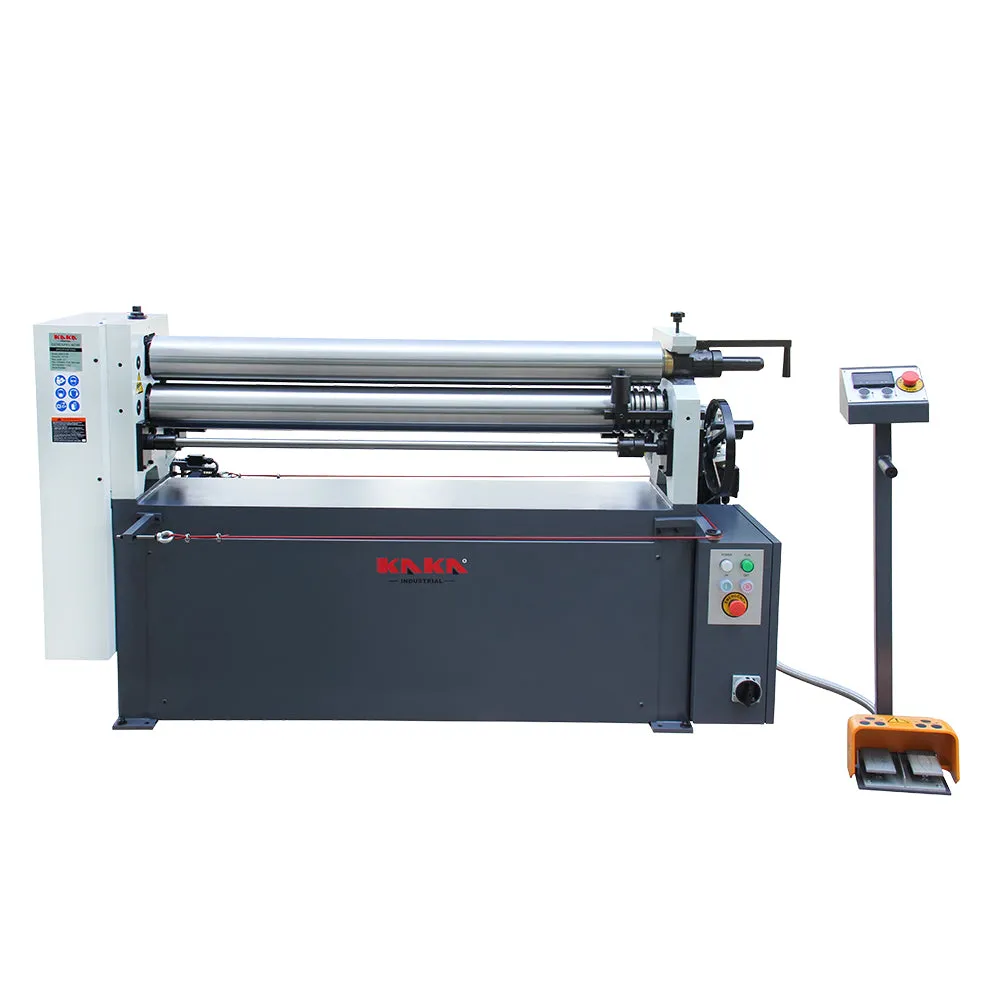

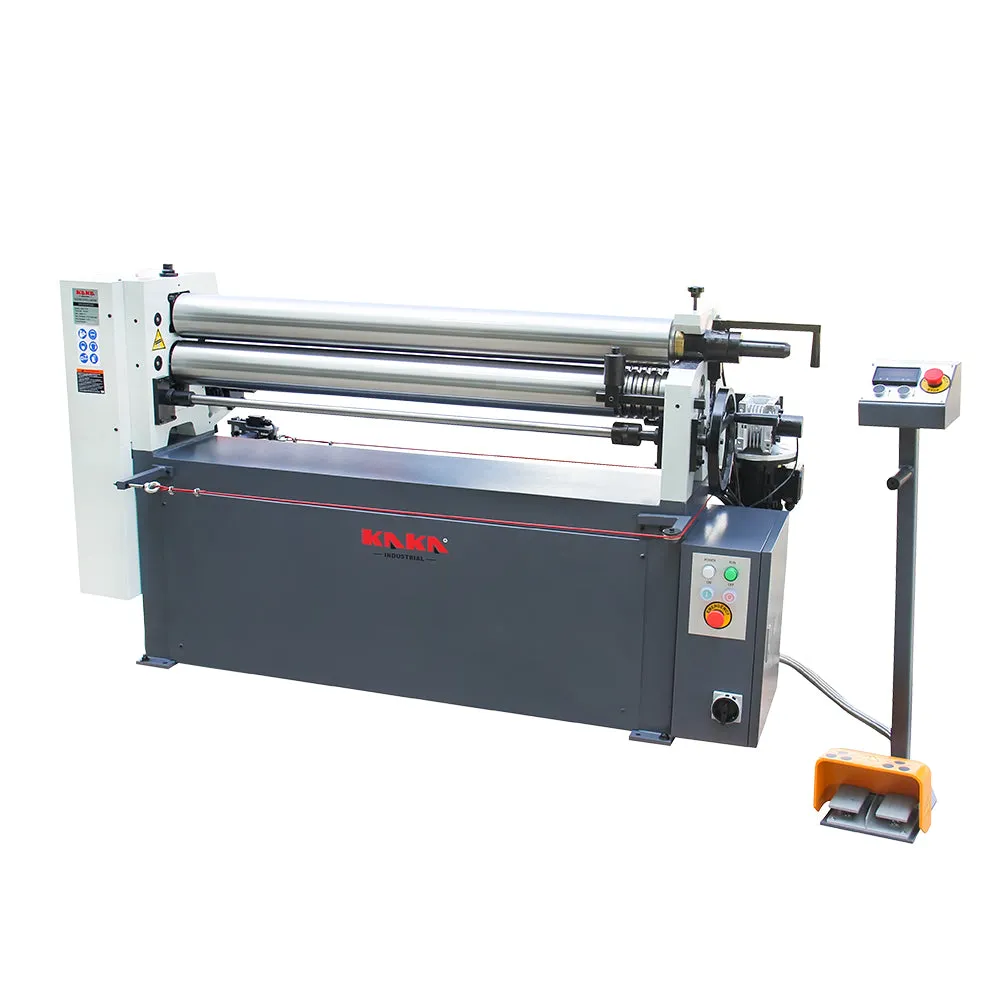

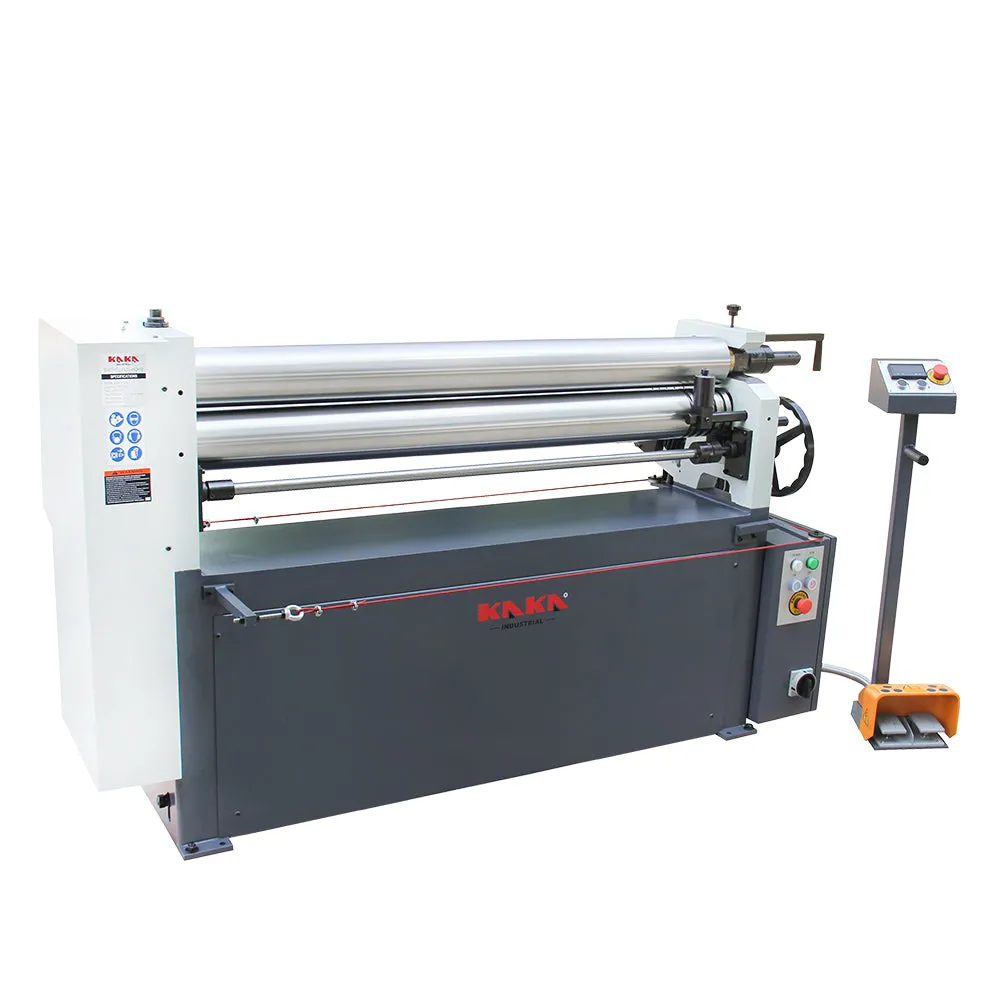

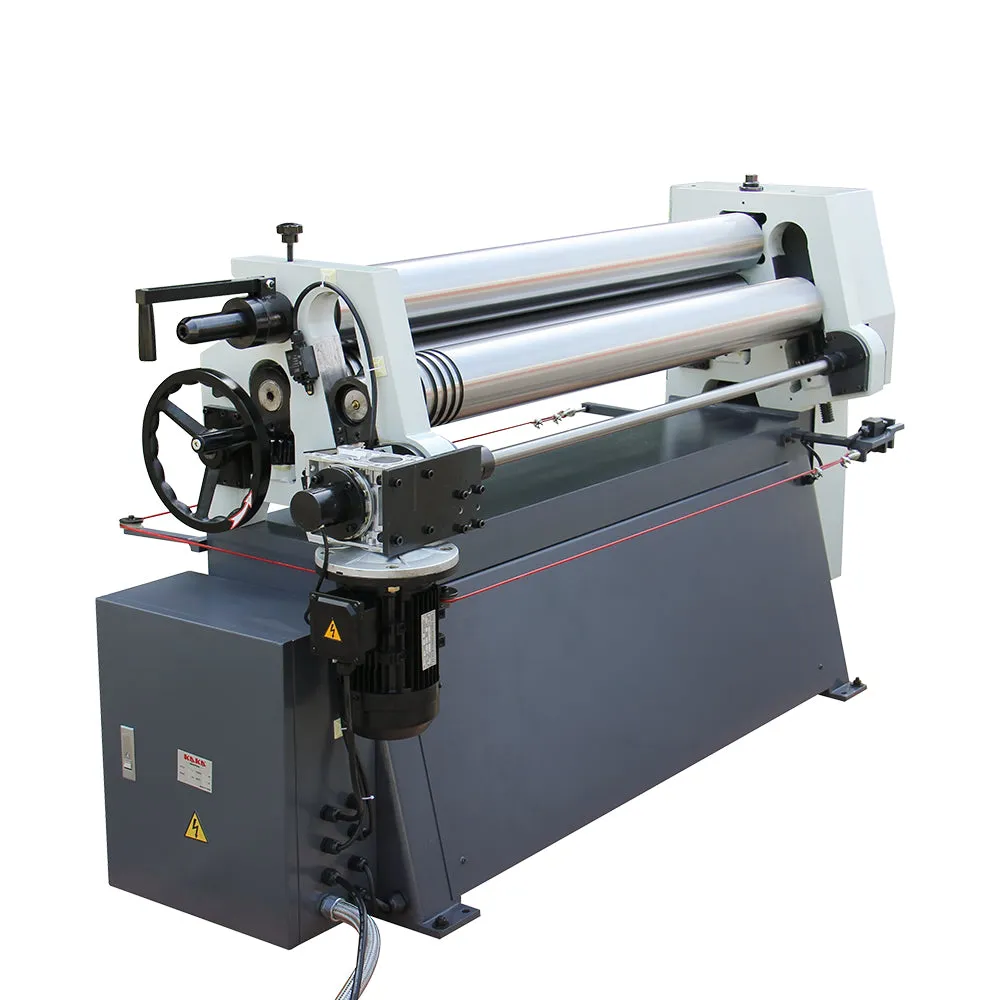

KANG Industrial ESR-5108E, 4.5x1300mm motorized plate curve rolling machine
Initial pinch asymmetrical roller, Motorized up and down for rear roller
Features
Runs on 415V-3PH power
Working width up to 1300mm
Could roll 4.5mm mild steel plate max. across the full-width
Safety line interlock system with emergency stop

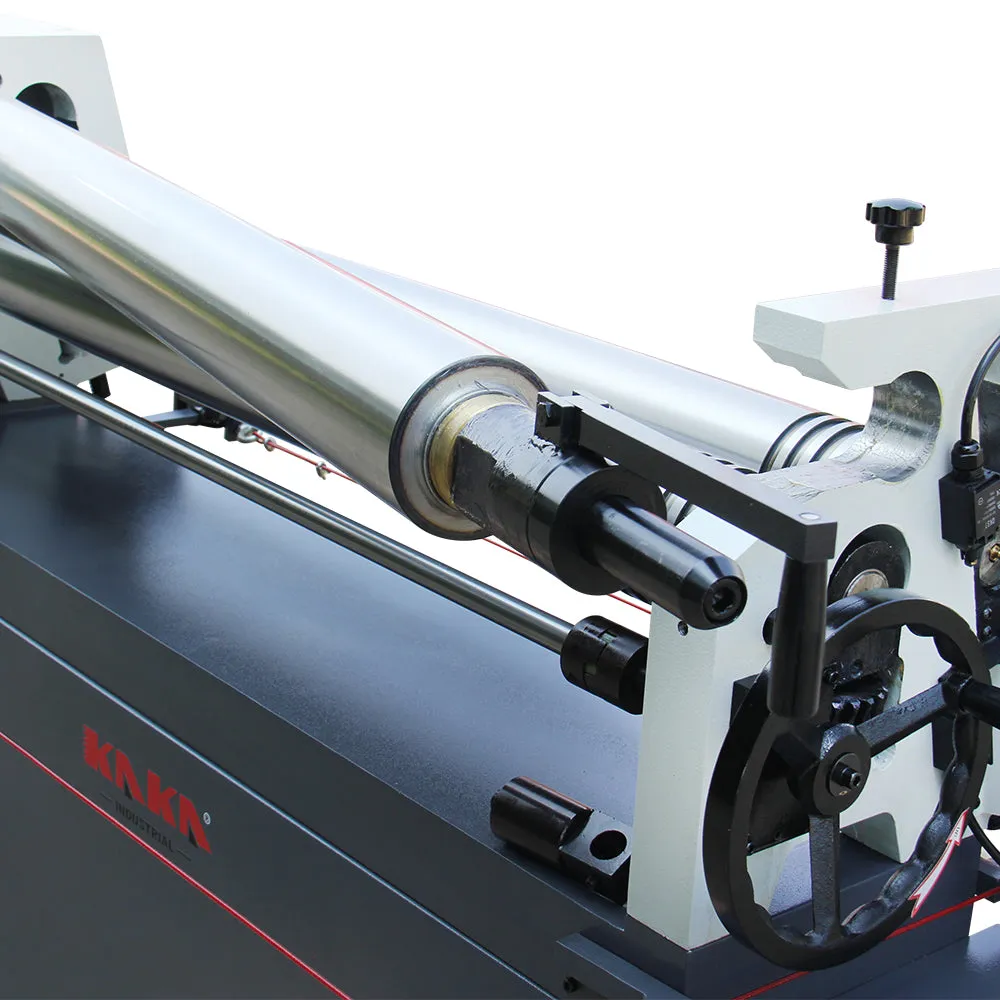

Top roll swing out across cam lock to take out the workpiece

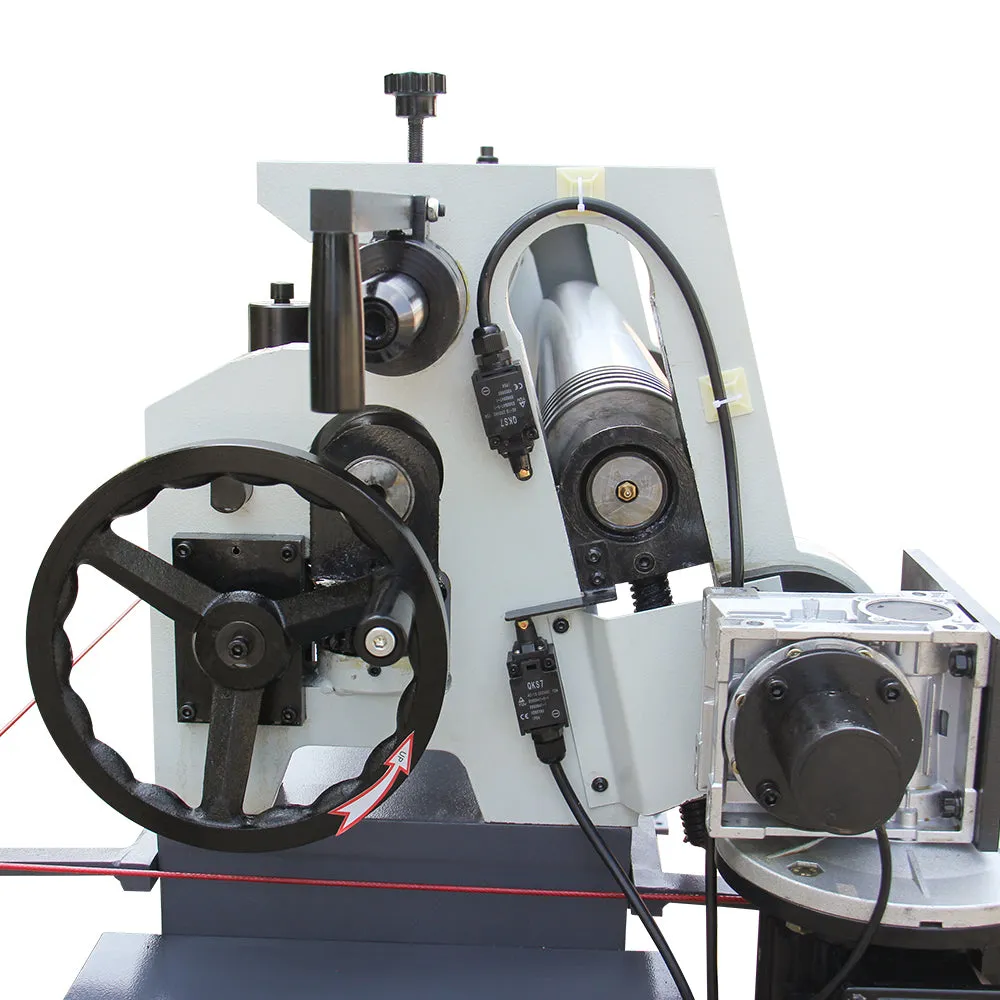

Rear roll positions are adjusted by the motor, and a readout to show the positions
Specifications
| SKU | 191105E |
| Model | ESR-5108E |
| Max. rolling thickness | 4.5 mm |
| Max. rolling width | 1300 mm |
| Dia. of roller | 120 mm |
| Min. Rolling dia. | 130 mm |
| Motor power | 2.2 kW |
| Roller speed | 9.3 rpm |
| Packing size | 200x76x127 cm |
| N.W./G.W. | 750/840 kg |
